How to set up WPS on my ZTE MF288

Go to Mobility support

Step 1 of 9

On your computer, connect to the ZTE MF288 via Wi-Fi, and then open a web browser.

On your computer, connect to the ZTE MF288 via Wi-Fi, and then open a web browser.

Step 2 of 9

Type http://setup.zte in the address bar, then press Enter on your keyboard.

Type http://setup.zte in the address bar, then press Enter on your keyboard.Type http://setup.zte in the address bar, then press Enter on your keyboard.Type http://setup.zte in the address bar, then press Enter on your keyboard.Type http://setup.zte in the address bar, then press Enter on your keyboard.

Step 3 of 9

Enter the password (the default is admin), then click Login.

Enter the password (the default is admin), then click Login.Enter the password (the default is admin), then click Login.Enter the password (the default is admin), then click Login.Enter the password (the default is admin), then click Login.

Step 4 of 9

Click Settings.

Click Settings.Click Settings.Click Settings.Click Settings.

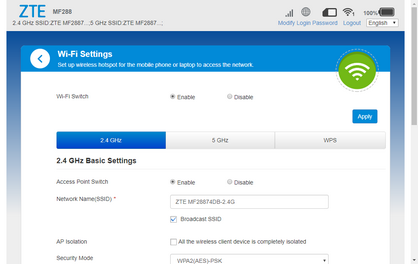

Step 5 of 9

Click WPS.

Click WPS.Click WPS.Click WPS.Click WPS.

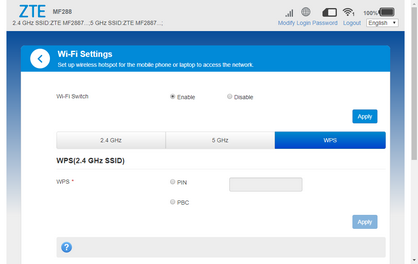

Step 6 of 9

There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.

There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.

Step 7 of 9

Then press the WPS button on your connecting device.

Then press the WPS button on your connecting device.Then press the WPS button on your connecting device.Then press the WPS button on your connecting device.Then press the WPS button on your connecting device.

Step 8 of 9

The ZTE MF288 will show when the devices are connected.

The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.The ZTE MF288 will show when the devices are connected.

Step 9 of 9

Use the connection manager on your device to verify that you are connected to the ZTE MF288.

Use the connection manager on your device to verify that you are connected to the ZTE MF288.Use the connection manager on your device to verify that you are connected to the ZTE MF288.Use the connection manager on your device to verify that you are connected to the ZTE MF288.
  1. On your computer, connect to the ZTE MF288 via Wi-Fi, and then open a web browser.
  2. Type http://setup.zte in the address bar, then press Enter on your keyboard.
  3. Enter the password (the default is admin), then click Login.
  4. Click Settings.
  5. Click WPS.
  6. There are two ways to connect your device using WPS, PIN input and Push button. For this example, click PBC to activate the push button.
  7. Then press the WPS button on your connecting device.
  8. The ZTE MF288 will show when the devices are connected.
  9. Use the connection manager on your device to verify that you are connected to the ZTE MF288.
